- skyBeacon | ADS-B Out, WAAS GPS, LED Navigation Light
-

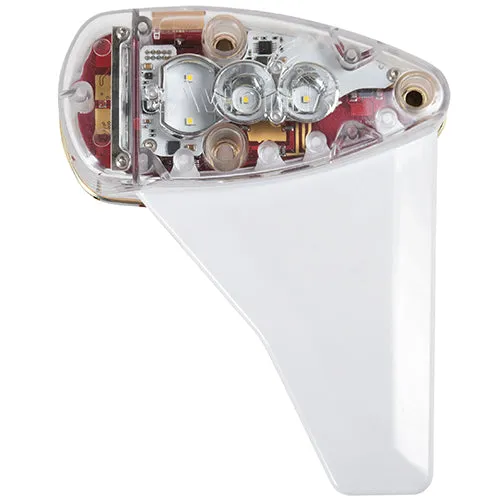

The skyBeacon from uAvionix is a TSO approved, LED wingtip position light with ADS-B Out UAT & Integrated WAAS GPS. With easy installation, configuration, and reduced down times, the skyBeacon provides an innovative and cost-effective, ADS-B Out, 2020 compliant solution without requiring any panel modifications or additional transponders.
- The skyBeacon features a UAT (978 MHz) transmitter and specially designed blade antenna that minimizes installation errors and antenna placement issues. Built-in WAAS GPS provides rule-compliant position data for ADS-B transmission without additional wiring or external GPS antenna mounting. The skyBeacon’s power transcoder decodes replies from legacy Mode C and Mode S transponders, so a new transponder is not required.
- Additionally, the integrated altitude encoder does not require connection to the aircraft static pressure system; instead, skyBeacon benefits from being mounted in the ideal altitude sensing location and incorporates Continuous Calibration™ technology. This patent-pending technology automatically and continuously calibrates the integrated altitude encoder for correspondence with the aircraft transponder’s altitude encoder allowing for compliant operations in remote and challenging environments. An extremely efficient LED position and anti-collision lighting complete the skyBeacon package.
-
The skyBeacon integrated solution consists of a total of five (5) TSOs:
- ADS-B (TSO-C154c, Class B1S)
- GPS (TSO-C145d, Class Beta 1)
- Barometric altitude sensor (TSO-C88b)
- Position Light (TSO-C30c, Type I)
- Anti-collision light (TSO-C96a, Class II)
- UAT Transmitter
- Meets the performance requirements of TSO-154c Class B1S. RTCA DO-282B Class B1S
- WAAS GPS
Integrated RAIM processor for Security and Integrity protection
SBAS corrections and health messages used to detect and correct satellite range errors
Satellite pseudo range step errors detected and excluded
SBAS fast and long-term corrections applied - Power Transcoder
Decodes altitude and squawk via aircraft electrical system - Certification
STC data package accepted by FAA with 272 aircraft AML - Regulatory
FCC ID 2AFFTUAT016R
ADS-B Out: 91.255, 91.227, AC 20-165B
GNSS Position: AC 20-165B
Position Light: SAE/AS8037 - Installation
Installation is as simple as replacing the aircraft position light
No airframe modifications or additional antennas are required
Works with any Mode C or Mode S transponder
Transponder data is provided via the existing aircraft wiring system using the Power Transcoder
skyBeacon uses the existing mounting location, breaker, and wiring
The installation requires 3 screws and 3 wires
